AirMIDI POG 2

The POG2, over the air.

A module that goes inside an Electro-Harmonix POG2 and gives it wireless MIDI. Preset switching and bypass from any Judahs controller. No cable to the pedal, no pairing.

Buy
AirMIDI POG 2
Against a wired mod

The other ways to put MIDI in a POG2 are wired: a module inside the pedal, and a cable from the controller to it. AirMIDI does the same job over the air.

CableNone between the controller and the POG2
PairingNone. Each device carries a registered AirMIDI code
PresetsSwitched from any Judahs controller that speaks AirMIDI
LinkESP-NOW

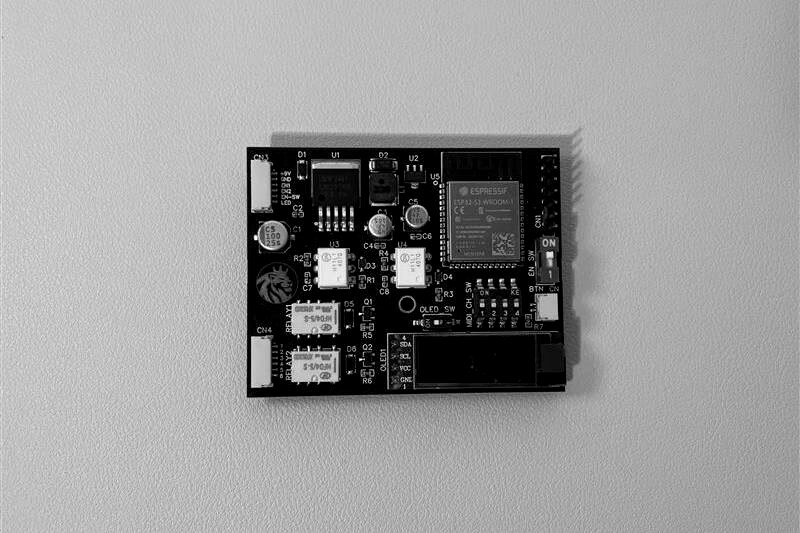

AirMIDI POG 2 module
MIDI CC
BypassCC 24. 0 bypassed, 127 engaged
Preset upCC 96. Any value increments
Preset downCC 97. Any value decrements
Channels

Set the DIP switches to the channel you want. The POG2 shows it top right as CH 1, CH 2, and so on.

AirMIDI POG 2 DIP switch channel map
Fitting

Seventeen steps with a soldering iron.

We fit it if you choose the installation option at checkout. You send the pedal to us, and shipping applies. Orders under $200 carry a partial shipping fee under the store policy.

AirMIDI POG 2 module connectors
01 · The module has three connectors: from the top, a 6-pin RTS_CON, a 2-pin SW_CON, and a 6-pin PRE_CON.
RTS_CON solder points on the POG2 board
02 · Where RTS_CON solders to the POG2.
RTS_CON pins soldered
03 · Solder the five RTS_CON pins near the top-left corner of the POG2 PCB, following the colours and connector order.
RTS_LED wire at CN2A
04 · The red RTS_LED wire goes to CN2A, the LED point.
RTS_CON connected
05 · Connect the connector to RTS_CON. Check each cable against its name before connecting.
Engage footswitch removed
06 · Loosen the Engage footswitch and melt the solder at the points shown to free the cables. It is the left-hand switch from the PCB side.
Engage switch cable
07 · The Engage switch cable with the switch removed.
Cable ends taped
08 · Tape and seal the cable ends. No pin may touch another, or the pedal misbehaves.
Supplied switch fitted
09 · Fit the supplied switch and secure it with the nut.
SW_CON connected
10 · Run the switch cable to SW_CON. Black and red order does not matter.
PRE_CON solder points
11 · Solder the six PRE_CON wires to the bottom-left area of the POG2 PCB, each to its colour.
PRE_CON connected
12 · Connect the soldered cables to PRE_CON. Check each against its number and colour first.
Centre screw inserted
13 · Insert the supplied screw into the hole at the centre of the board.
White support attached
14 · Attach the white support to the back side.
POG2 centre screw loosened
15 · Loosen the screw at the very centre of the POG2 PCB.
AirMIDI screw fastened
16 · Fasten the AirMIDI screw where the POG2 centre screw was.
Antenna cable soldered to the enclosure
17 · Solder the antenna cable, circled, to the aluminium enclosure. The enclosure becomes the antenna. Paint blocks it.
Specifications
FitsElectro-Harmonix POG2
LinkAirMIDI, on ESP-NOW. No pairing; each unit carries a code
ControlPreset switching and bypass from any Judahs AirMIDI controller
ChannelsSet on DIP switches. The channel shows top right on the POG2
AntennaThe POG2 aluminium enclosure, soldered to the module
FittingSoldered inside the pedal. Installation service available

The POG2 you already own, without the cable.
