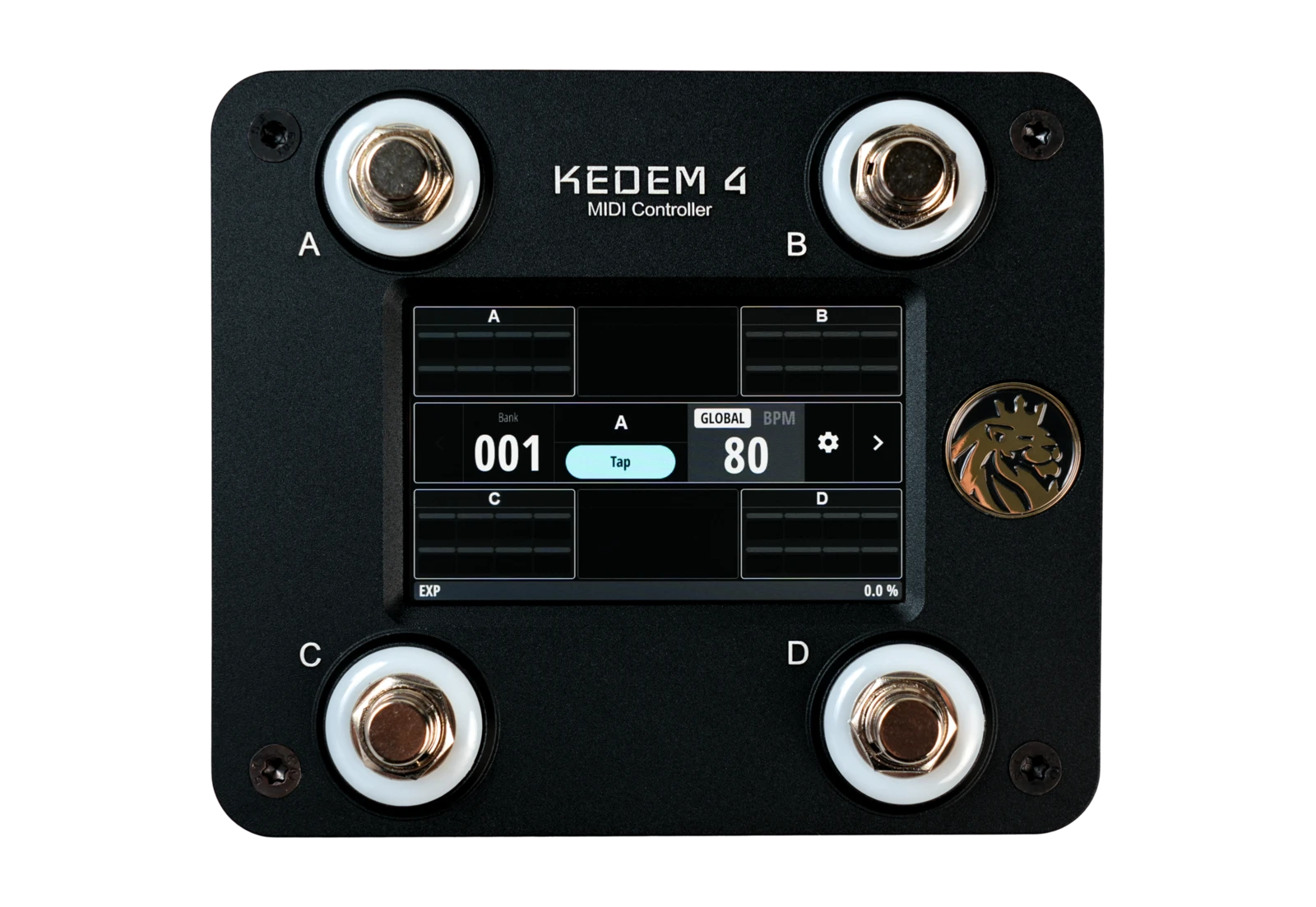

KEDEM4
Four switches. Same screen.
The same display, the same AirMIDI, the same editor as the Kedem 6. Four switches across 140 mm, for the board that has run out of room.
Discontinued
The first generation is out of production. Every unit we built has an owner.
We still support them: manuals, firmware, and repair.
The unit
Touch displayEvery setting is on the 3.5-inch screen. No app, no computer.
Switch actionsOne press, double press, long press, double long press, and a release action for each. Eight per switch.
Banks100. Four switches and their combinations per bank, 30 MIDI messages per preset.
ExpressionThe zero point is set on the unit. Up to 5 MIDI CC messages per switch.
Dynamic CC
A CC value moves over 0.1 to 10 seconds. Volume swells and filter sweeps arrive as a ramp, not a step.
Rear panel
One of each port, in 140 mm. USB MIDI and TRS MIDI/Relay are both here.
MIDI1× MIDI IN, 1× MIDI OUT, 1× USB MIDI OUT
TRS1× TRS MIDI, 1× TRS MIDI/Relay
External1× switch input, 1× expression pedal input
Power9V DC, centre negative. 250 mA
Works with
Kedem 4 speaks standard MIDI. It controls anything that accepts Program Change or Control Change.
Amp modellersNeural DSP Quad Cortex, Kemper Profiler and Profiler Player, Line 6 Helix, Fractal Audio
Delay and reverbStrymon Timeline, BigSky and Volante; Eventide H9 and H90; Meris
Pedals with TRS MIDIChase Bliss, Meris, Empress, Source Audio
AmpsChannel switching through the TRS MIDI/Relay output
AirMIDI carries the same messages without a cable, to Judahs devices that speak it.
Specifications
Dimensions140 mm (W) × 121 mm (D) × 62 mm (H)
Weight760 g (1.68 lbs)
Display3.5-inch touch LCD
Power9V DC, centre negative. 250 mA
MIDI ports1× MIDI IN, 1× MIDI OUT, 1× USB MIDI OUT, 1× TRS MIDI, 1× TRS MIDI/Relay
External controls1× external switch input, 1× expression pedal input
Wireless MIDIAirMIDI
Storage100 banks. 4 switches and their combinations per bank, 8 actions each, 30 MIDI messages per preset
Kedem 4 or 6Kedem 6
Same display, same AirMIDI, same editor. The difference is width, and how many things you reach at once.
Kedem 4140 mm, 760 g. Four switches, one of each port.
Kedem 6190 mm, 960 g. Six switches, 2× MIDI OUT, 2× TRS MIDI, 2× external switch inputs.
The same screen, in 140 mm.
