KEDEM6

Name: Kedem 6
Brand: Judahs
SKU: KDM6

Six switches. One screen.

A MIDI foot controller with the settings on the unit. Six switches, a 3.5-inch touch display, AirMIDI wireless. There is no app step.

Discontinued

The first generation is out of production. Every unit we built has an owner.

We still support them: manuals, firmware, and repair.

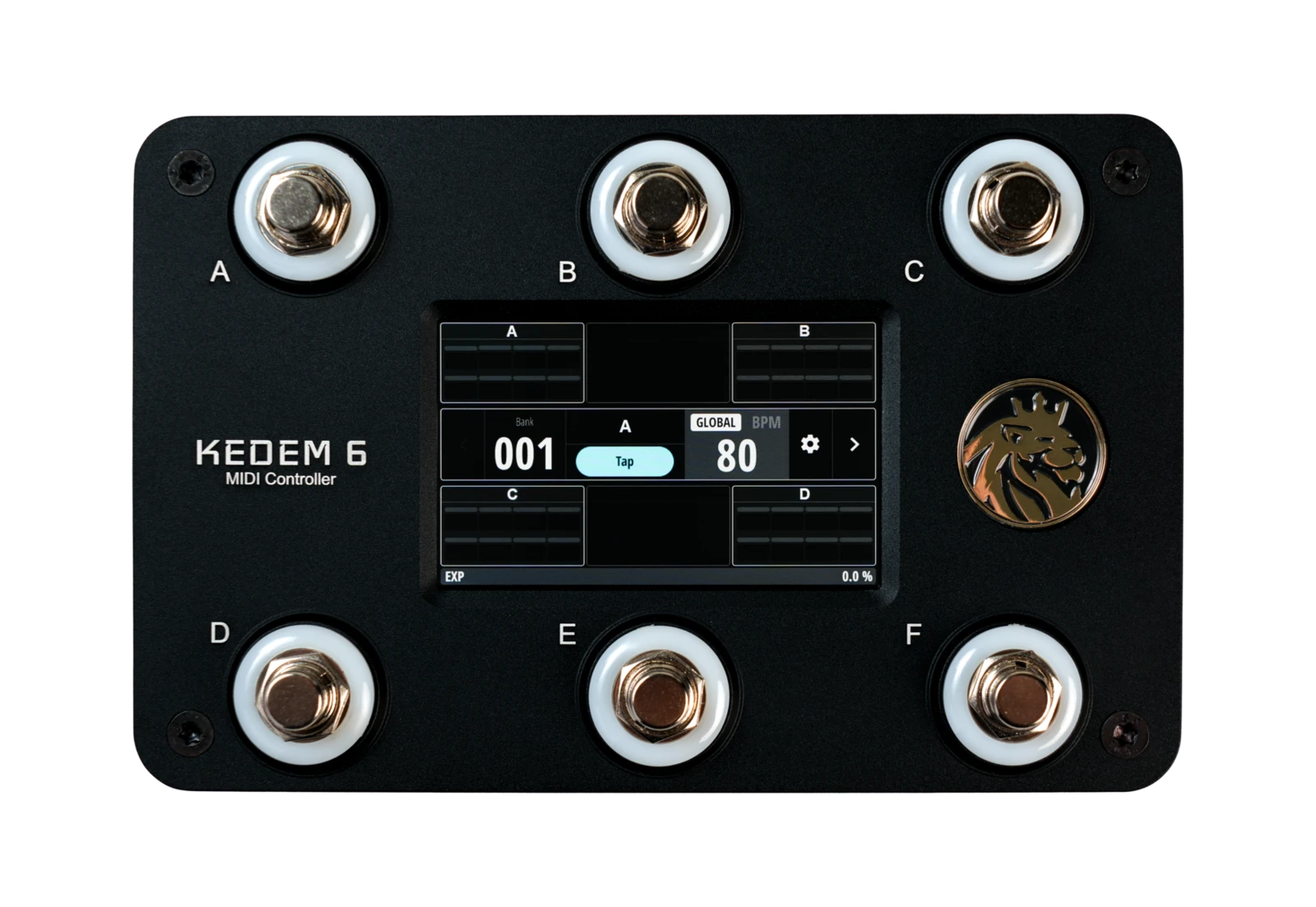

The unit

Touch displayEvery setting is on the 3.5-inch screen. No app, no computer.

Switch actionsOne press, double press, long press, double long press, and a release action for each. Eight per switch. Two switches combine.

Banks100. Six switches and 15 switch combinations per bank, 30 MIDI messages per preset.

ExpressionThe zero point is set on the unit. Up to 5 MIDI CC messages per switch.

Dynamic CC

A CC value moves over 0.1 to 10 seconds. Volume swells and filter sweeps arrive as a ramp, not a step.

Rear panel

Two MIDI OUT ports, two TRS MIDI ports and USB MIDI reach several devices at once. No hub in the chain.

MIDI1× MIDI IN, 2× MIDI OUT, 1× USB MIDI OUT

TRS2× TRS MIDI, 2× TRS MIDI/Relay

External2× switch inputs, 1× expression pedal input

Power9V DC, centre negative. 250 mA

Works with

Kedem 6 speaks standard MIDI. It controls anything that accepts Program Change or Control Change.

Amp modellersNeural DSP Quad Cortex, Kemper Profiler and Profiler Player, Line 6 Helix, Fractal Audio

Delay and reverbStrymon Timeline, BigSky and Volante; Eventide H9 and H90; Meris

Pedals with TRS MIDIChase Bliss, Meris, Empress, Source Audio

AmpsChannel switching through the TRS MIDI/Relay output

AirMIDI carries the same messages without a cable, to Judahs devices that speak it.

Specifications

Dimensions190 mm (W) × 121 mm (D) × 62 mm (H)

Weight960 g (2.12 lbs)

Display3.5-inch touch LCD

Power9V DC, centre negative. 250 mA

MIDI ports1× MIDI IN, 2× MIDI OUT, 1× USB MIDI OUT, 2× TRS MIDI, 2× TRS MIDI/Relay

External controls2× external switch inputs, 1× expression pedal input

Wireless MIDIAirMIDI

Storage100 banks. 6 switches and 15 switch combinations per bank, 8 actions each, 30 MIDI messages per preset

Kedem 6 or 4Kedem 4

Same display, same AirMIDI, same editor. The difference is width, and how many things you reach at once.

Kedem 6190 mm, 960 g. Six switches, 2× MIDI OUT, 2× TRS MIDI, 2× external switch inputs.

Kedem 4140 mm, 760 g. Four switches, one of each port.

Six switches, and the screen that sets them.
