Programmable loop switcher · MIDI controller

KOINOS PLS 8

Name: Koinos PLS 8
Brand: Judahs
SKU: PLS8
Price: 1000.00 USD
Availability: SoldOut

Eight loops, set up on the unit itself.

Eight loops and a stereo insert, set up on an 8.88-inch touch display, with a choice of 500 kΩ or 1 MΩ at the input. You do not need a laptop for any of it.

Buy$1,000

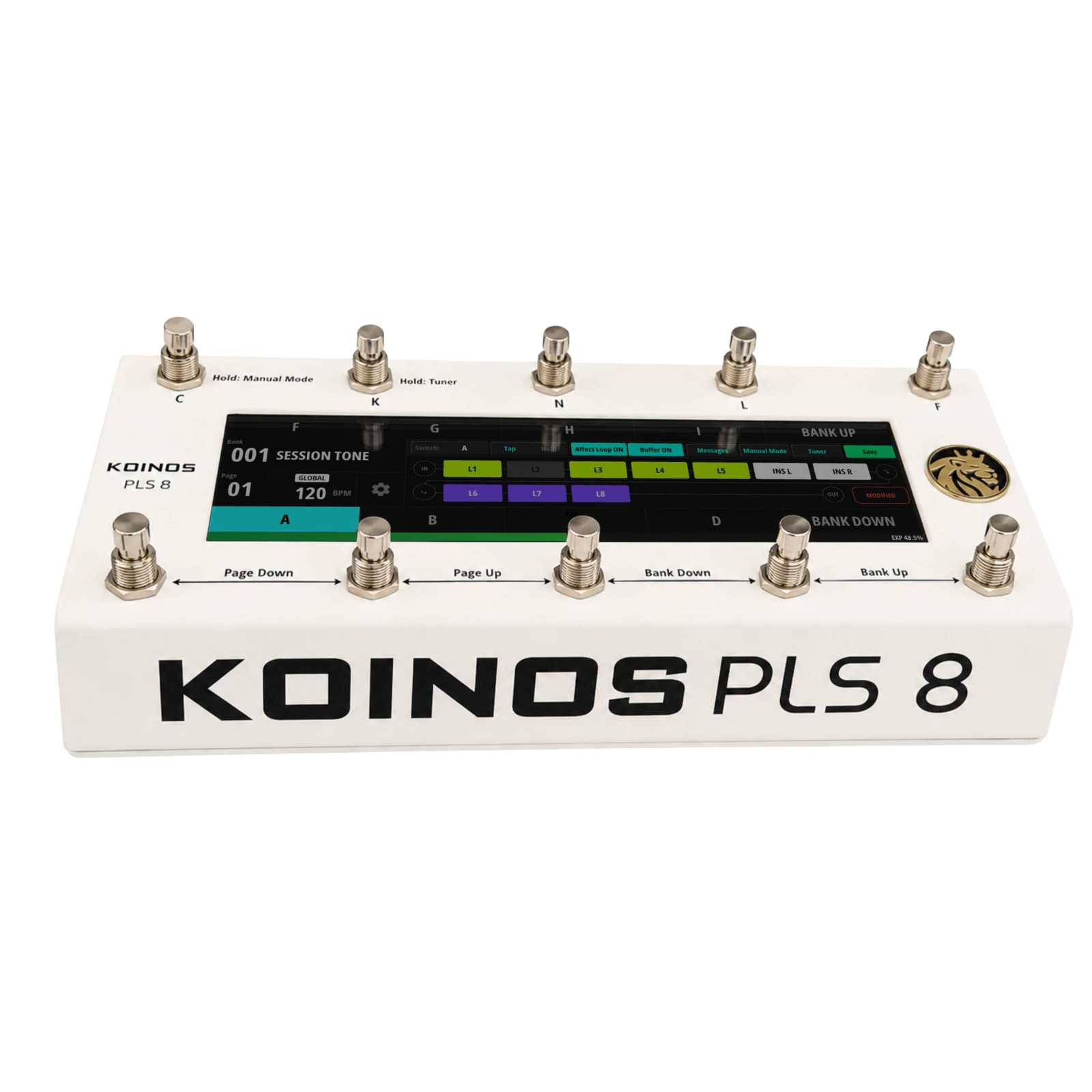

Koinos PLS 8, front view with the display on

1980

Bob Bradshaw founded Custom Audio Electronics.

Each effect went into its own loop, and the switching moved to one controller at the player’s feet.

Before 1980

Each pedal came with its own switch.

The fuzz had one on top, and the wah had a switch marked Straight and Wow-Wow. Five pedals meant five switches in five places.

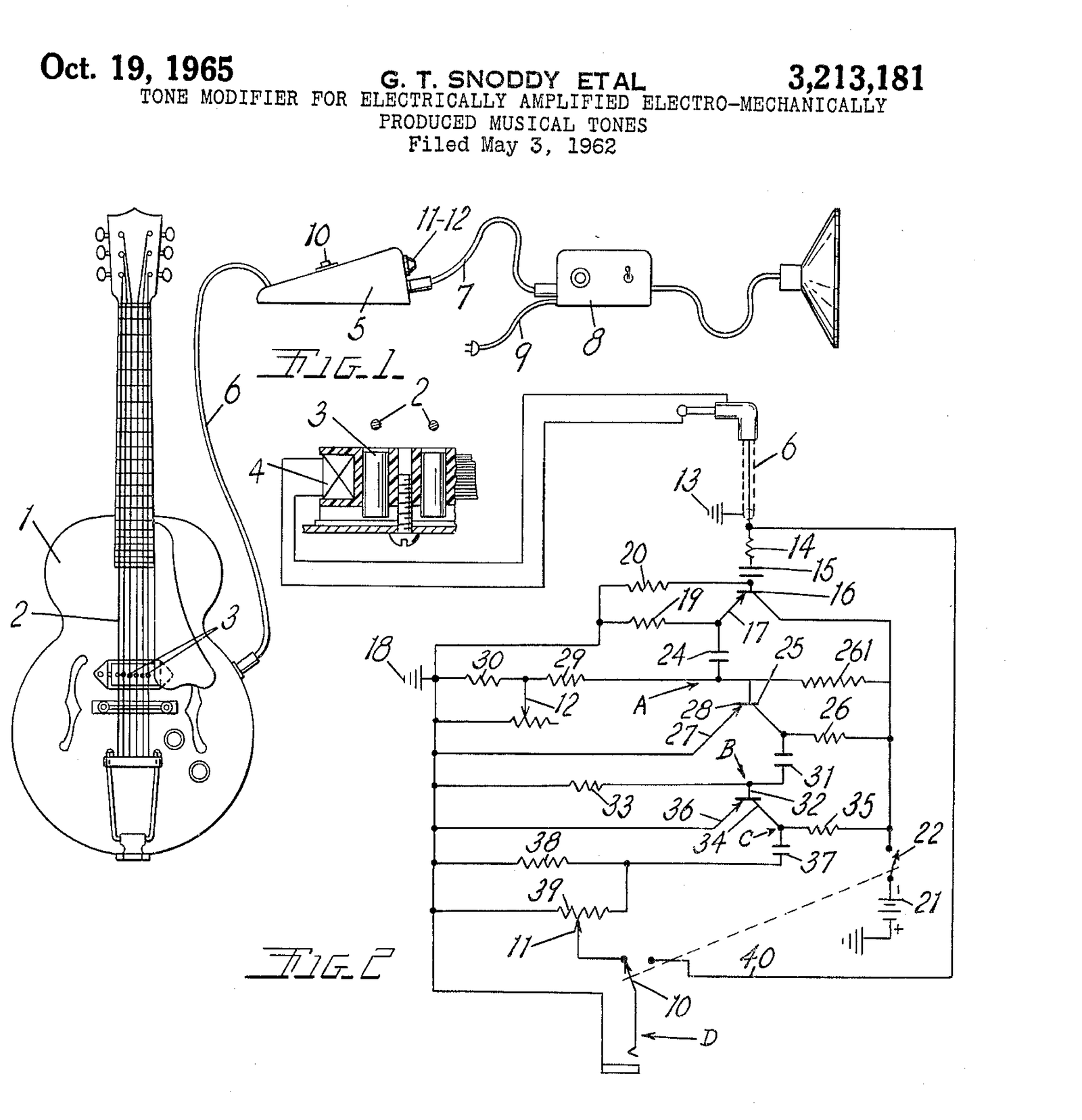

Drawing from U.S. Patent 3,213,181, 1965: a guitar, a pedal and an amplifier, and the pedal circuit with its on and off switch — 1965 · U.S. Patent 3,213,181 · Tone modifier

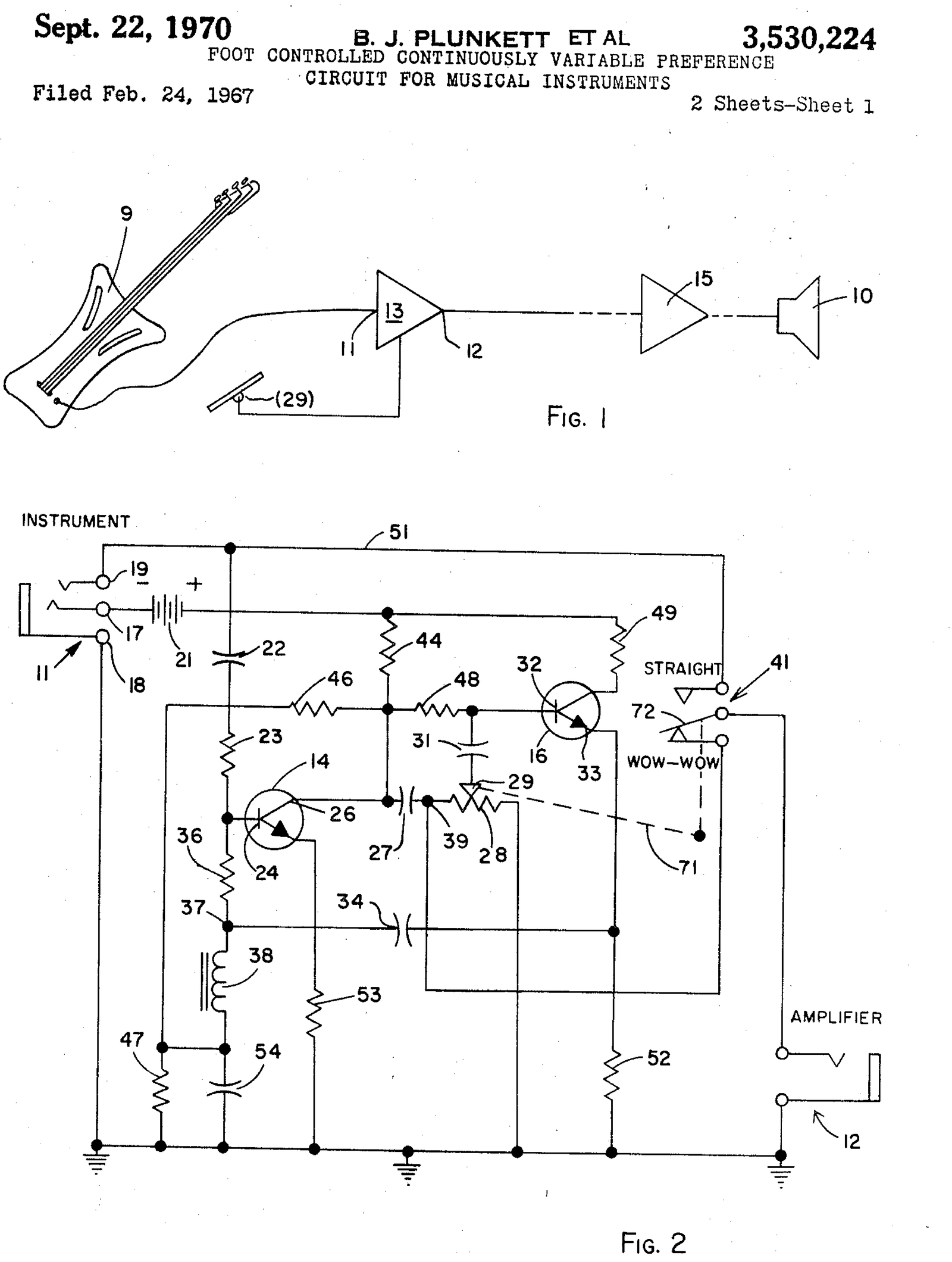

Drawing from U.S. Patent 3,530,224, 1970: a foot-controlled circuit with a switch marked Straight and Wow-Wow — 1970 · U.S. Patent 3,530,224 · Foot-controlled preference circuit

The part we inherited

None of this starts with us.

Bob Bradshaw started building switching systems in 1980, and Custom Audio Electronics still builds on that plan. RJM carried the standard forward and put MIDI control in the same box. We spent months studying their work before the first board of our own came back from the factory. Koinos PLS 8 would not exist without either of them.

Custom Audio Electronics and RJM are trademarks of their respective owners and are not affiliated with Judahs.

We set out to learn that sound. Not to beat it.

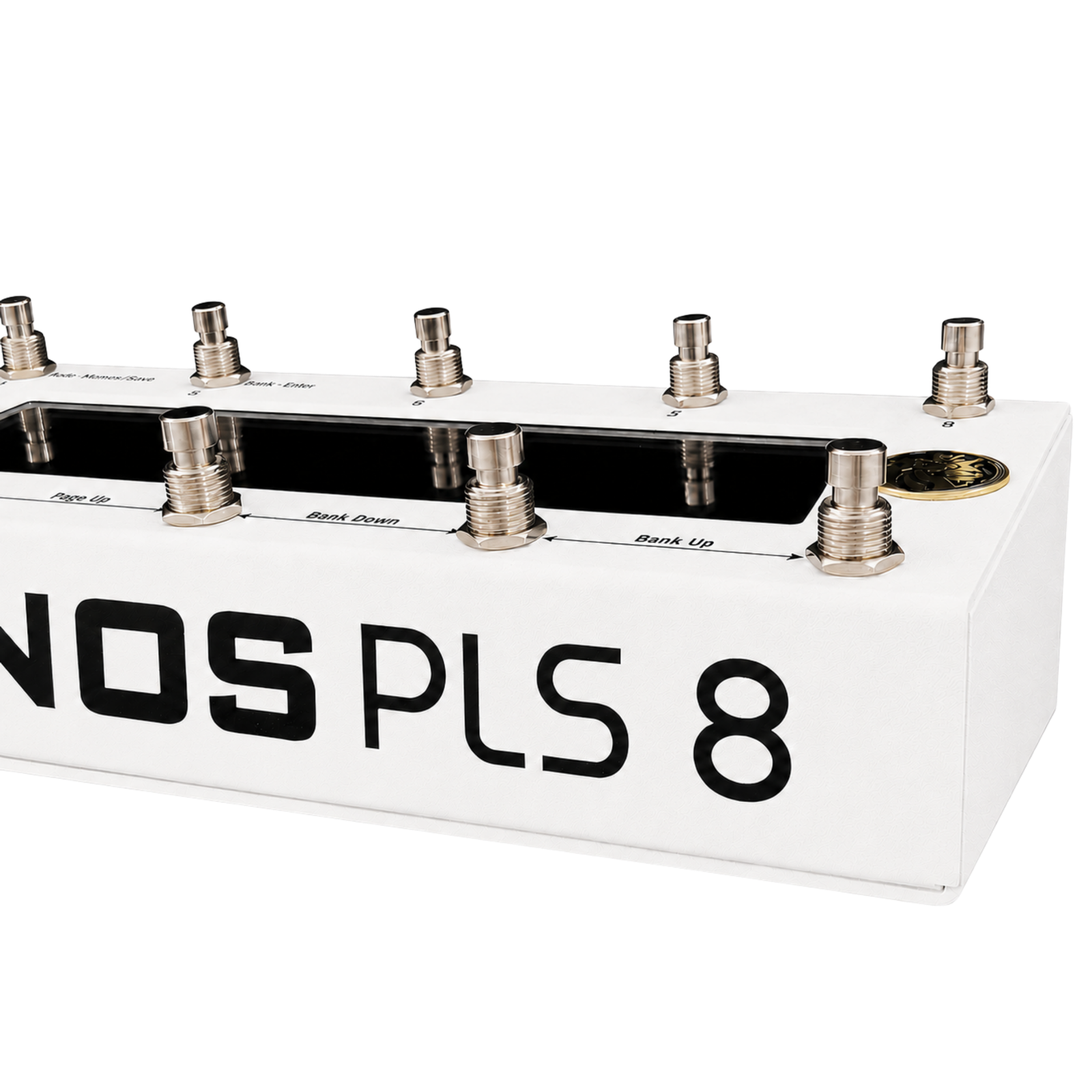

Koinos PLS 8, close-up of the lettering on the front face

Soundcheck is running short. One preset needs one small change. Out comes the laptop.

The loops are still at the player’s feet, as they were in 1980. The decisions moved to a laptop.

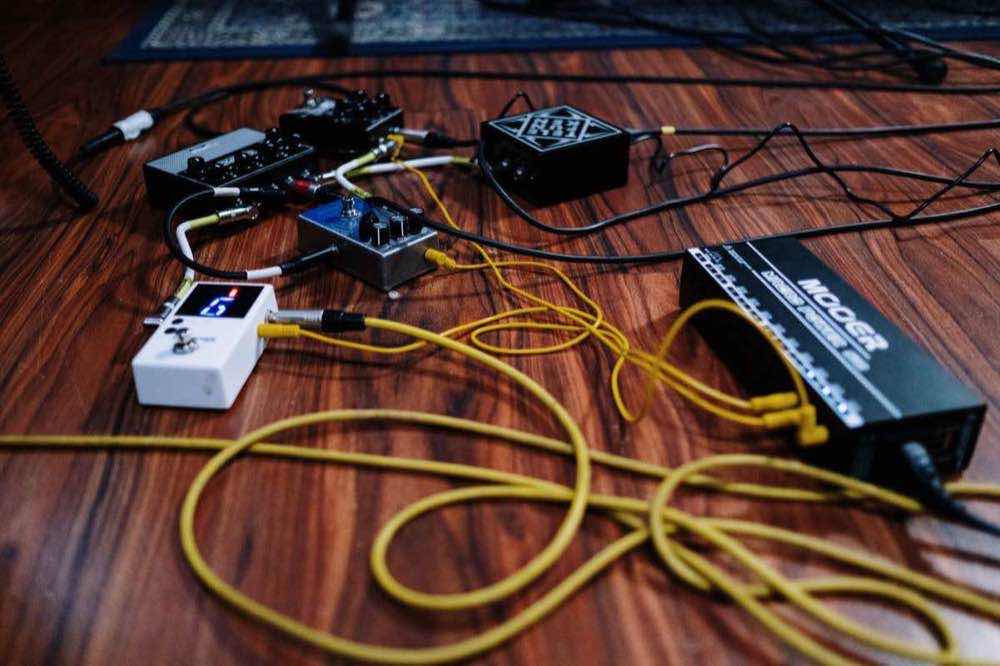

The old way: one box, one job, many cables

The part we did not

What we chose not to inherit is the place where decisions happen.

Setup lives on an 8.88-inch touch display on the unit, so a change at rehearsal or mid-show does not need a laptop.

Input impedance

Even the input impedance is yours to decide.

500kΩ

Warmer · Default

1MΩ

Brighter

The setting changes the load your pickups see. A relay switches it in the circuit, and you choose it on screen.

On the screen

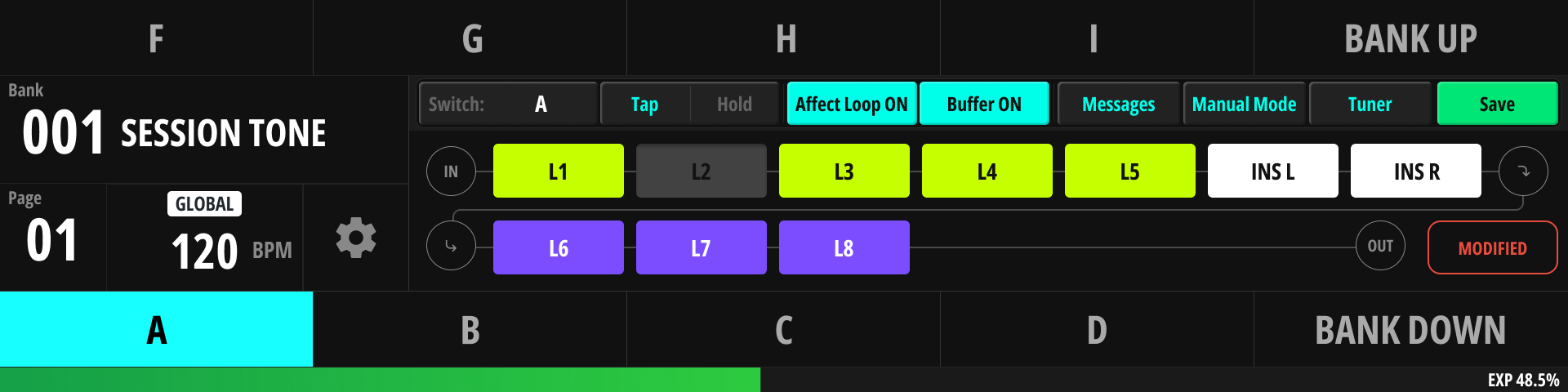

Performance view: bank, page, chain, tempo.

Chain order, dragged with a finger.

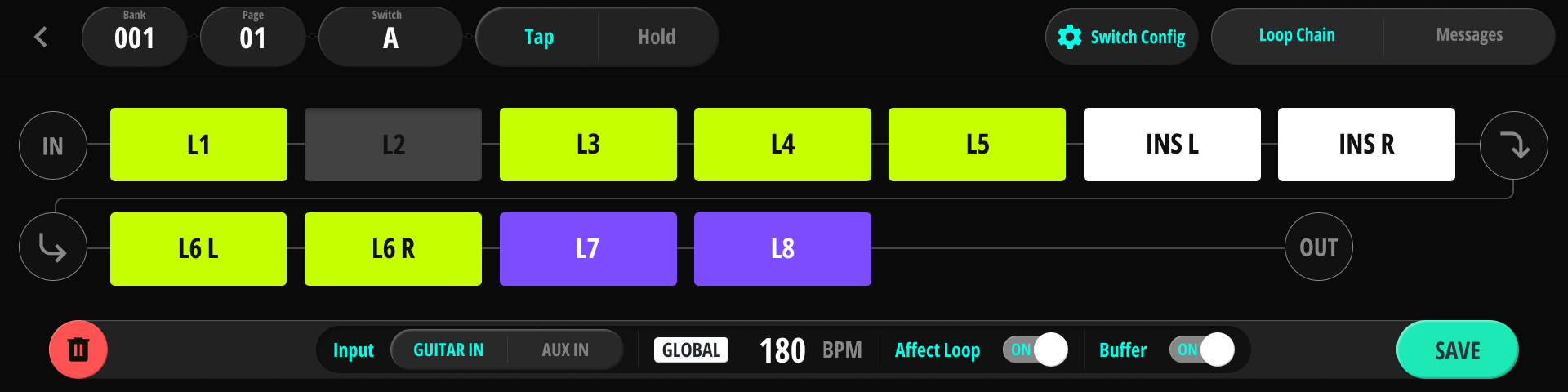

Preset edit: input, buffer, loops.

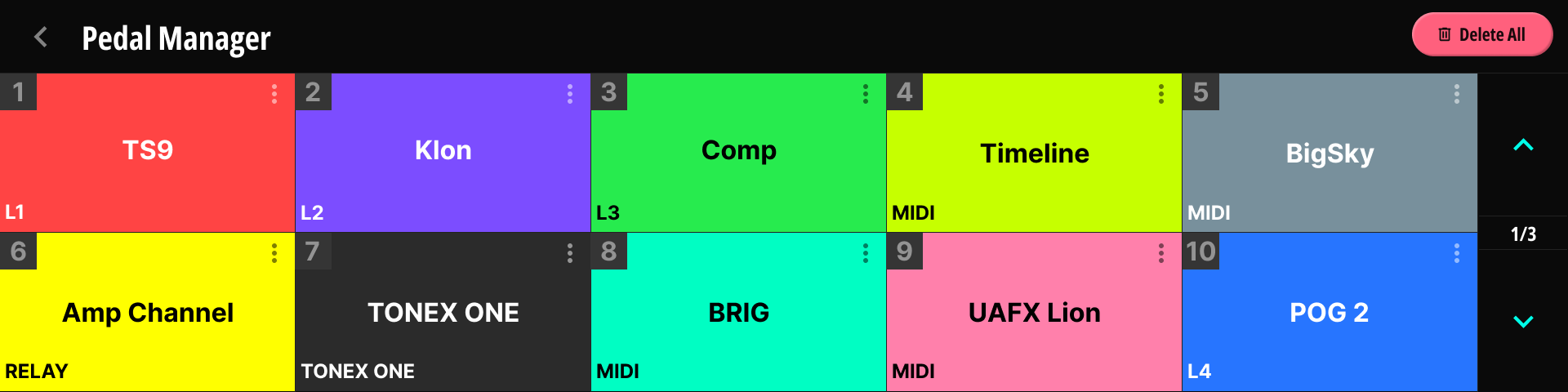

Pedal manager: loops, MIDI, relay and ToneX in one list.

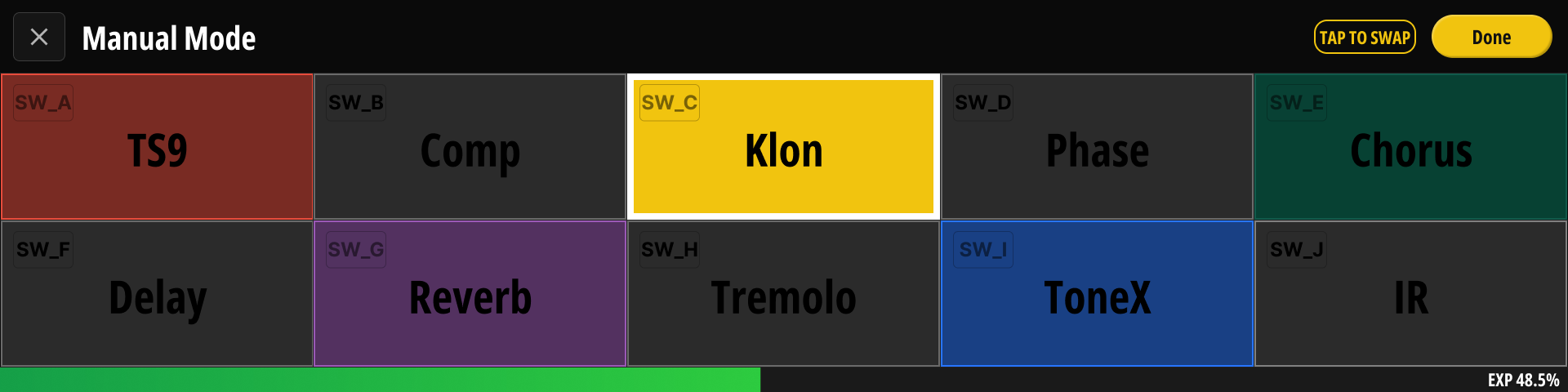

Manual mode: ten switches, one pedal each.

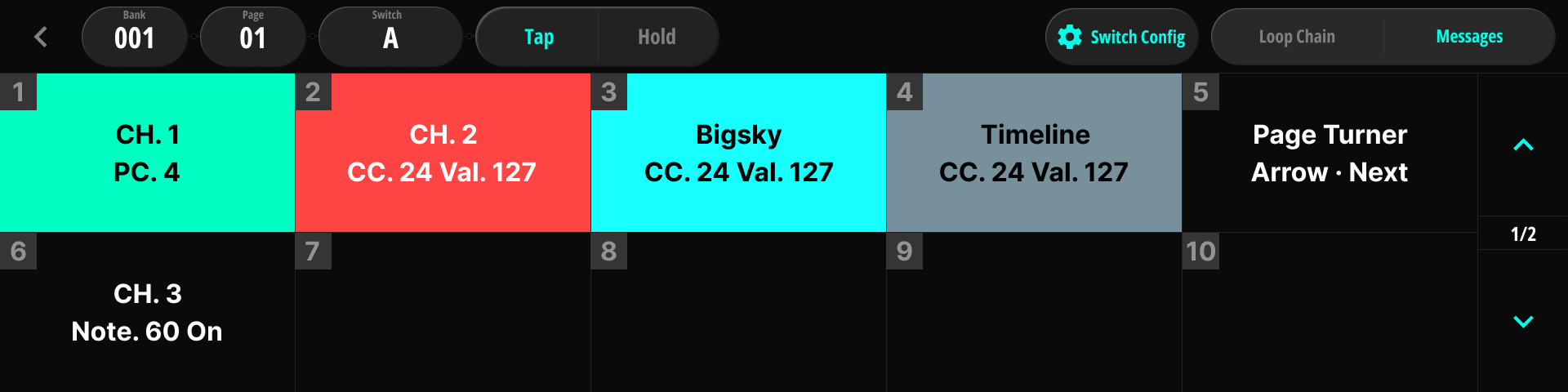

One switch, its messages: PC, CC, notes.

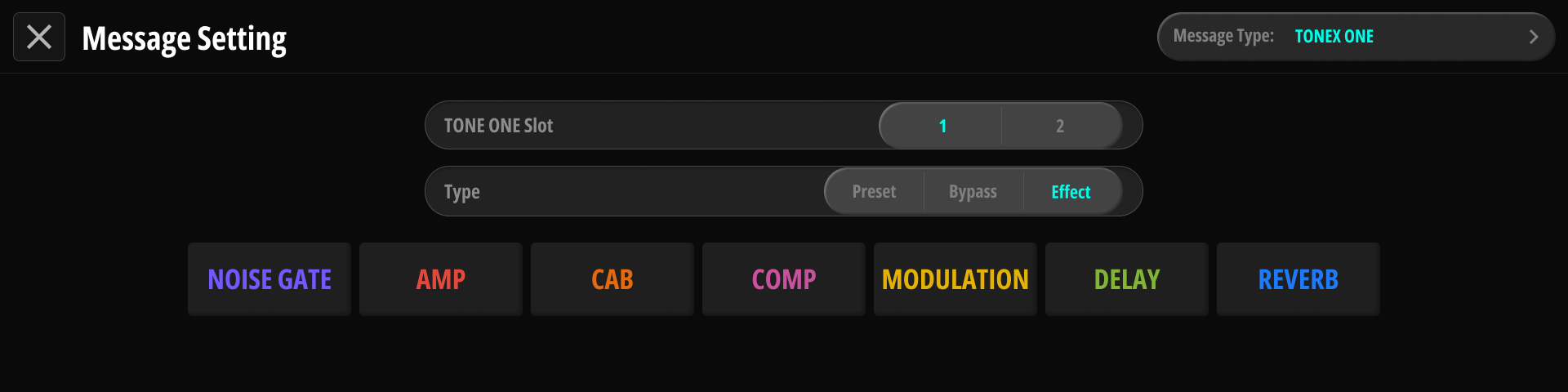

ToneX One over USB: slot, type, blocks.

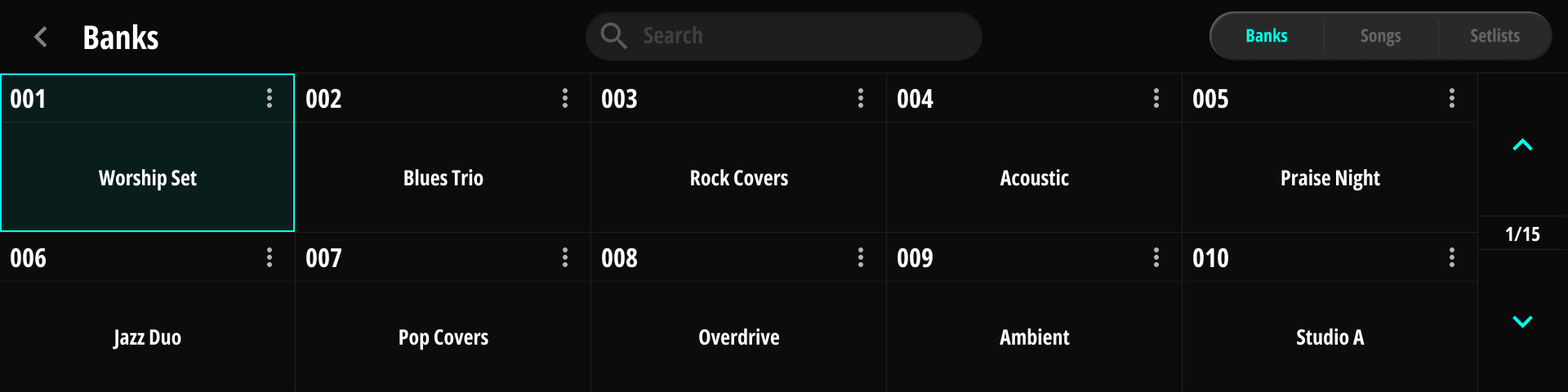

1,200 songs. 100 setlists.

Editor

The laptop is optional.

When you want to edit on a Mac or a Windows PC, Judahs Studio is the editor. It works on the same banks, songs and setlists the unit holds, and it’s free.

Download Judahs Studio

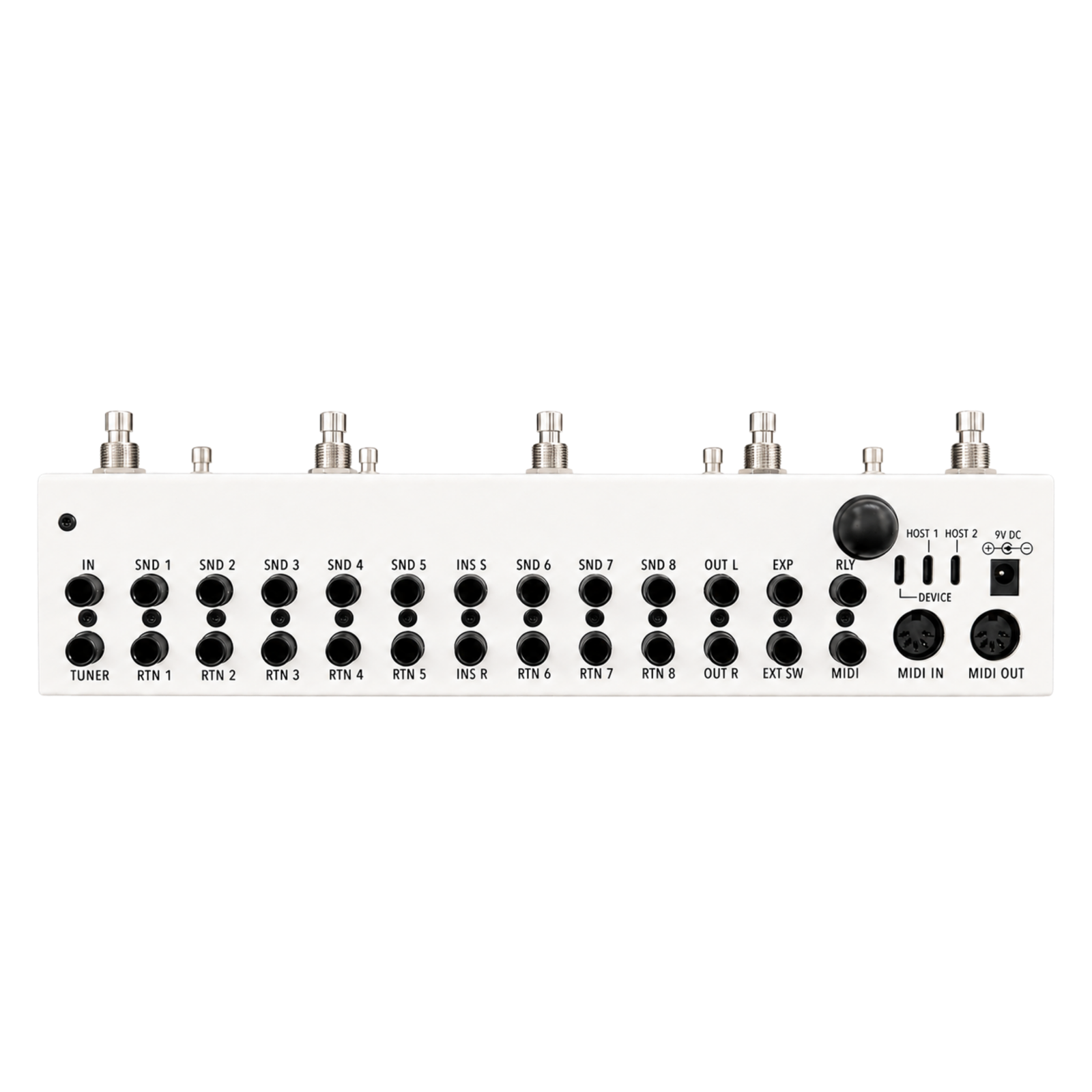

Rear panel

Each effect in its own loop.

8 send/return pairs · insert · stereo out · expression · relay · 2 × USB host · MIDI in/out · 9 V DC

What we added

Reorder your pedals with a touch.

No cables. Saved per preset.

Plug USB-MIDI gear straight in.

Two USB host ports take USB-MIDI devices without a DIN adapter.

Forget CC numbers.

482 devices and over 17,000 MIDI parameters, on the unit.

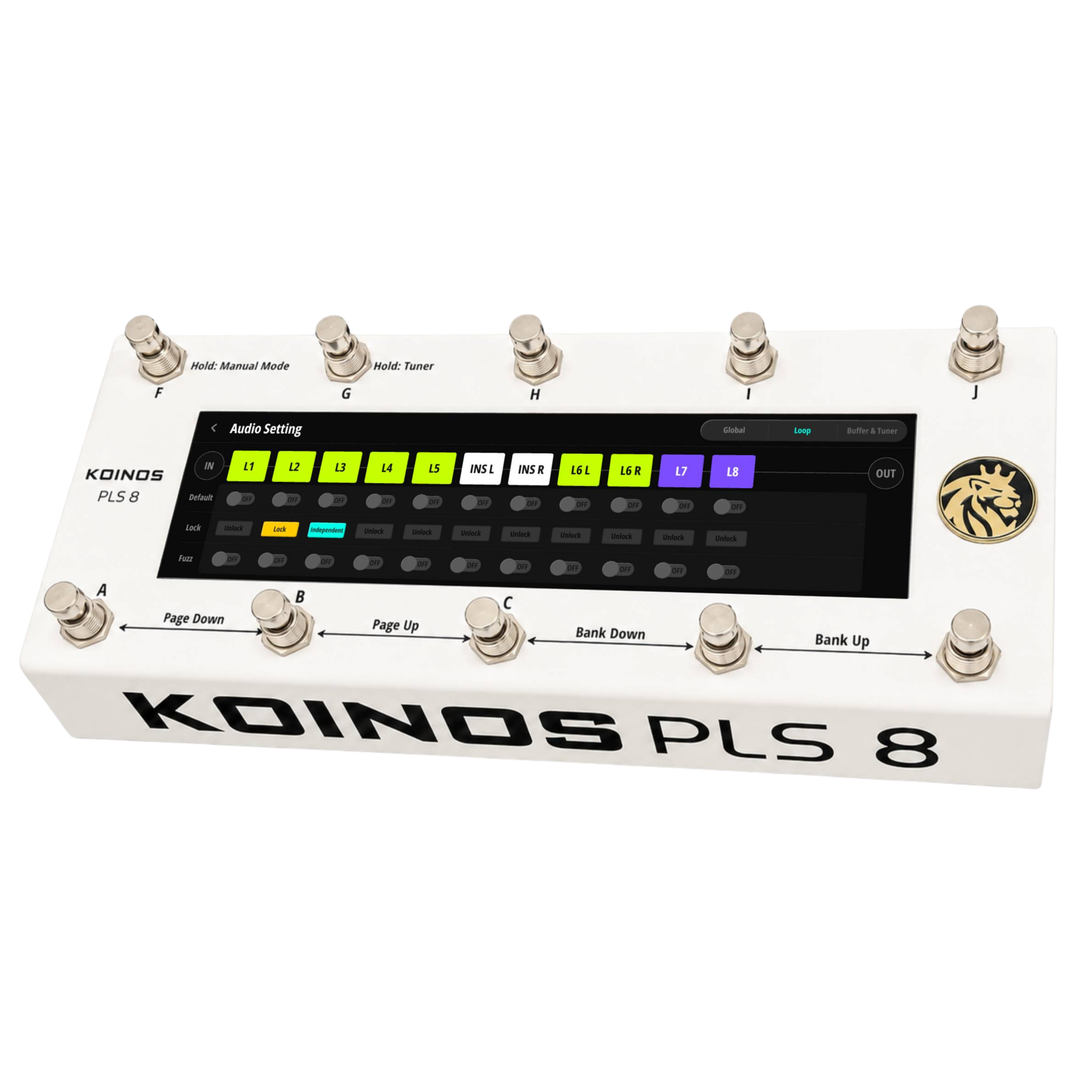

Koinos PLS 8, angled view with the loop settings on the display

Specifications

Audio

Signal path100% analog

Loops8 loops: Loops 1–5 mono, Loops 6–8 stereo (or each split into two mono loops, up to 11 mono loops)

InsertBuffered stereo insert loop, separate from the 8 loops

RoutingMatrix switching, loop order stored per preset, up to 13 chain positions (11 mono loops plus the insert split in two)

Input bufferSwitchable, 500 kΩ or 1 MΩ input selected on screen

Fuzz loopInput buffer bypassed while a fuzz loop is on and first in the chain

InputsGuitar In · Aux In (shares its socket with Tuner Out)

OutputsOut L · Out R, two separate mono jacks · Tuner Out (shares its socket with Aux In)

Control

Footswitches10 built in · 8 two-switch combinations · 2 external, up to 20 assignable

ExpressionExpression pedal input, TRS jack

External switchSingle or dual external switches, TRS jack

Relay outAmp channel switching, tip and ring independent

TunerBuilt in, full screen and a mini tuner while playing · Tuner Out always on

MIDI & USB

MIDIDIN in · DIN out · TRS out (Type A, Type B, Tip active, Ring active) · USB

USB2 × host for USB-MIDI devices or ToneX One · 1 × device for the editor and USB-MIDI

MIDI dictionary482 devices and over 17,000 parameters, held on the unit

Wireless

BluetoothBluetooth LE, for page turning and the editor

Wi-Fi2.4 GHz access point, for the editor

AirMIDIWireless MIDI link to other Judahs devices, up to 20 receivers

AntennaExternal, 2 dBi, rear panel

Display & memory

Display8.88-inch IPS touch, 1920 × 480

Memory150 banks · 1,200 songs · 100 setlists · 20 messages per action

System

Processing3 dual-core processors: one for the display, switching and MIDI, and one for each USB host port

Boot0.8 seconds

EditorJudahs Studio, for macOS and Windows

Physical

Power9 V DC, center negative, 1 A

Dimensions290 × 120 × 86 mm (W × D × H)

Weight1.44 kg

From today it is your pedalboard.
